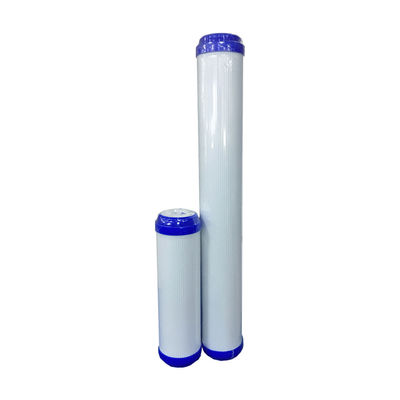

20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell

20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell
20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell

Large Image :  20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell

Product Details:
Place of Origin: Shandong, China
Brand Name: HuiSiDun
Payment & Shipping Terms:
Minimum Order Quantity: 5000 pieces
Price: $0.80/pieces 5000-9999 pieces
Packaging Details: According to customer requirements
Supply Ability: 50000000 Piece/Pieces per Year
Contact Now

20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell

Description
Condition: New Applicable Industries: Hotels, Food & Beverage Factory, Farms, Home Use, Energy & Mining
Weight (KG): 1 Showroom Location: Canada, United Kingdom, Indonesia, India
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 6 Months
Core Components: Pressure Vessel Warranty: 1 Year
Product Name: UDF Filter Cartridge Application: Remove Odors From Water
Type: Granular Activated Carbon Size: (L)20in
Function: Produce Fresh Water Stage: Second Stage
Color: White+blue Shell Material: Food Grade Polypropylene
Water Pressure: 0.1-0.4 MPA Port: Qingdao

20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 0
Product Description
Product name
UDF Granular activated carbon filter
Working pressure drop
0.1~0.2kgf/cm
Max pressure borne
7kgf/cm
Max differential pressure
4kgf/cm
Max working temperature
60°C
Max flow rate
8LPM@10’’ with 0.15kgf/cm dp
Surface area
800~1000m2/g

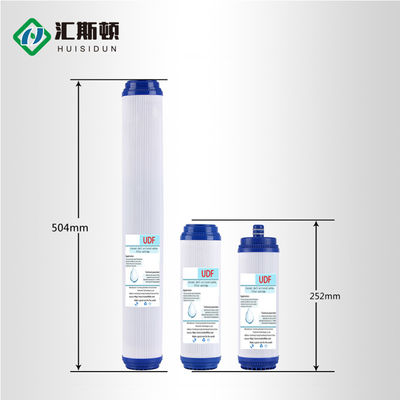

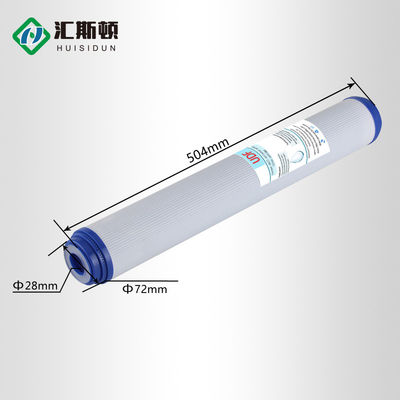

Dimension
ID: 30mm; OD: 65mm, 115mm
Length
10’’, 20’’, 30’’, 40’’
Iodine absorption value
900mg/g
Benzene absorption value
20~25%
Methyl blue absorption value
13~16ml/g
COD removal rate
0.5825
Residual chlorine removal rate
≥96.83%

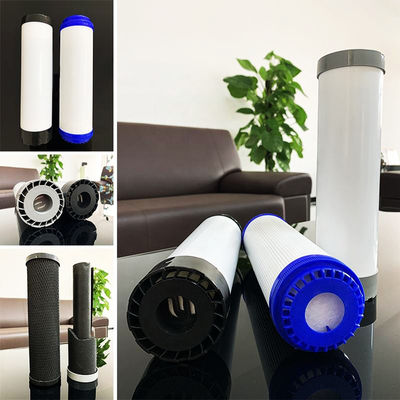

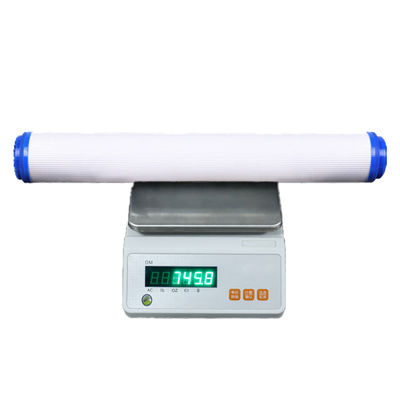

Details Images
20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 1
20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 2
20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 3
20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 4
Recommend Products
20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 5
Company Profile
20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 6
20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 7
Exhibition
20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 8
Certifications
20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 9
Product packaging
20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 10
FAQ
Q: What is granular activated carbon?
Granular activated carbon is made of highly porous adsorbent material, produced by heating organic matter such as coal, wood and coconut shells in the absence of air, which is then pulverized into particles. Activated carbon is positively charged and therefore able to remove negative ions from water such as ozone, chlorine, fluoride and dissolved organic solutes by being absorbed onto the activated carbon.

Q: Where can we use it?
Premium coconut shell granular activated carbon filters are commonly used in reverse osmosis pre filtration and many other filtration applications. This filter element fits into a standard 10" housing To keep the filter system operating efficiently, replace this filter element periodically as needed. For many residential applications this may be 6-12 months. Before putting a new cartridge into service, drain 2-3 gallons of water into the waste to rinse off the toner. Water flows from bottom to top with rubber gasket on top.
20in UDF Activated Carbon Water Filter Cartridge with Food Grade Polypropylene Shell 11
