Product Details:
|
Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company | Showroom Location: | Canada, United Kingdom, United States, Pakistan, India |
---|---|---|---|
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | New Product 2020 | Warranty Of Core Components: | 6 Months |
Core Components: | Pressure Vessel | Condition: | New |
Voltage: | 110 | Power: | 0.3 |
Dimension(L*W*H): | 30in | Weight: | 0.5 Kg |
Warranty: | 1 Year | Name: | Wire Wound Filter Element |
Core Components: | Permeable Membrane | Important Composition: | Polypropylene |
Weight: | Depending On Capacity | Length: | 10"20"30" 40"50"60" |
Type: | Domestic Or Industrial | Application: | Water Treatment |
Usage: | Liquefaction Filtration | Color: | White |
Size: | Customization |
Brand | HuiSiDun | ||||||

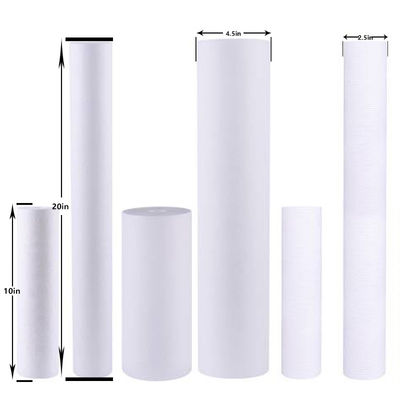

Size | Diameter: 2.75" (69 mm) 4.5"(120 mm) | ||||||
Length: 5"/10"/20"/30"/ 40" etc. | |||||||
Filtration Area | Single 10" filter element is about 0.65m² | ||||||
Dissolution(20℃) | Testing The filters without pre-washing . After 24 hours immersion in water, the dissolution was less than 30 mg/10" filters. | ||||||
Minimum Bubble Point of Integrity Test Data | 0.1 μm: > 0.38 MPa in Water | ||||||
0.22 μm : > 0.32 MPa in Water | |||||||
0.45 μm: > 0.20 MPa in Water | |||||||
Conditions of steam sterilization and hot water sterilization | Sterilization temperature: hot water 85℃ | ||||||
Steam 121 ℃/30 min, more than 15 times | |||||||
Maximum pressure difference and temperature | Maximum operating temperature: 85℃/0.2 MPa; 25 ℃ | ||||||
Typical flow rate (Water, 20℃) | 0.1 um: 4 lpm/0.01MPa/10" | ||||||
0.22 um: 10 lpm/0.01MPa/10" | |||||||
0.45 um: 15 lpm/0.01MPa/10" |
